0.5m (1.6ft) USB 3.1 cable, Type-C to Type-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 50cm Type-C to Type-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$11.00 -
Sale!
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
100m (328 ft) USB 3.0 high flex Active Optical Cable (USB power adapter included)
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (33o ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Package includes:
- 1 x 100m (328 ft) USB 3.0 Active Optical Cable
- 1 x USB Super Adapter for AOC
- 1 x 5V DC power adapter.
Original price was: $399.00.$359.00Current price is: $359.00. -
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
10m (33 ft) USB 3.0 High flex Active Optical Cable (USB power adapter included)
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (330 ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Package includes:
- 1 x 10m (33 ft) USB 3.0 Active Optical Cable
- 1 x USB Super Adapter for AOC
- 1 x 5V DC power adapter
$199.00 -
10m (33 ft) USB 3.0 Hybrid AOC, Type-A to Female Type-A
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (3.7 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 50 meters or 164 ft with a maximum bandwidth speed of 5 Gbps and features a female Type-A connector (with screw lock support), to which the user can attach any regular, short USB 3.0 cable of Type-A to Type-A/Type-B/Micro-B, to drive any USB 3.0 device. Alternatively, a USB 3.0 hub can be attached to which USB 2.0 and 3.0 devices can be connected for backwards, USB 2.0, compatibility.Main Features
- Length: 10m (33 ft)
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device (up to 30 meters),
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 27mm/ 13mm
- Auxiliary power supply for devices with more than 2W power dissipation via USB 2.0 Micro-B connector
- Device side: USB 3.0 Female Type-A. Connector dimensions: 82mm / 26mm /14.5mm
- Cable diameter: 4 mm
- Bend radius: Static: 40 mm, Dynamic: 80 mm
- Supply voltage: 4.75V – 5.25V
- Power dissipation: Less than 2.1W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 50′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$179.00 -
10m (33 ft) USB 3.0 Hybrid AOC, Type-A to Micro-B, high flex
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (4 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 20 meters or 66 ft with a maximum bandwidth speed of 5 Gbps and features a Micro-B connector with screw lock support, making it ideal for machine vision, industrial and robotic applications.Main Features
- Maximum Length: 20m
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 19mm/ 8mm
Device side: USB 3.0 Micro-B plug with locking screws. Connector dimensions: 49.5mm / 23.5mm /10mm - Cable diameter: 4.8 mm
- Bend radius: 50 mm
- High flex rated for for >20 million cycles for bending stroke of 1m, velocity 80 cycles/min
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: 0.95 W
- Device supply current: Max 5V – 900mA (up to 15m), 600mA (20m)
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$189.00 -
USB 3.0 Active Optical Cables, USB 3.1 cables
10m (33 ft) USB 3.1 Gen1 Hybrid AOC, Type-A to Type-C screw lock
Unibrain Type-A to Type-C hybrid Active Optical Cable (AOC) is a USB 3.1 Gen1 compliant device, supporting transmission speeds up to 5 Gbps with excellent signal quality.
Compared to traditional copper cables, which have a maximum length of up to 5m with active components, the Hybrid USB 3.1 AOC is slimmer, lighter can be extended up to 20 meters with bus power delivery and can handle much better EMI/EMC interference.The cable can be used in video conferencing applications, as security camera extensions, machine vision cameras and high speed USB 3.0/3.1 external storage.
Main Features
- Length: 10m (33 ft)
- High flex compliant, more than 10 million cycle times
- Max data speed: 5 Gbps (USB 3.1 devices),
480 Mbps for USB 2.0 devices (up to 5m) - Hot-plugging, no driver required
- Tensile strength (Long/Short term): 200N/500N
- Cable jacket material: TPU
Specifications
- Host side: USB 3.0 Type-A plug
Device side: USB 3.1 Type-C plug with screw lock support - Cable diameter: 4.9 mm +/- 0.2mm
- Bend radius: 40 mm static / 80 mm dynamic
- Supply voltage: 4.75 – 5.25 V
- Power consumption: 110 mA, 5A input
- Power output: 900 mA
- Operating conditions: -20’C – 70’C, 0%-85% humidity
- Compliance: CE/RoHS/UL 758
$169.00 -
1m (3.3 ft) USB 3.1 cable, Type-C to Micro-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 1m Type-C to Micro-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$10.90 -
1m (3.3 ft) USB 3.1 Gen2 10 Gbps cable, USB-C to USB-C
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 1m (3.3 ft) USB-C Type-C to Type-C cable supports data speeds in USB 2.0 / USB 3.1 Gen1 / USB 3.1 Gen2 with transmission rate up to 10 Gbps .
Main Features:
- Double shielding for signal protection.
- RoHS/REACH compliant.
- The USB 3.1 Gen2 cables support a maximum power delivery up to 100W (20V/5A) with E-marker chip automatically adjust current.
- SuperSpeed+ 10Gbps data transfer (Type-C to Type-C only), ideal single-cable solution for all of your data transfer needs including audio/video for Ultra-HD 4K displays, complete large store file transferring in seconds.
- Maximum length: 3.3 ft (100 cm)
$19.90 -
1m (3.3 ft) USB 4.0 40 Gbps braided cable
Unibrain’s USB 4.0 cables are USB-IF certified (USB4 Gen3x2), designed for professional applications, supporting Display Port, PCI express, Thunderbolt 3 and backwards compatibility with USB 3.2, USB 2.0.
The 1 meter (3.3 ft) USB 4.0, features Type-C to Type-C, PVC over-molding on both connectors and braided cable jacket and supports data speeds up to 40 Gbps and up to 100W power delivery.
Main Features:
- Double shielding for signal protection.
- Supports Display port resolutions up to 8K, 60Hz.
- Built-in high-speed re-timer and e-Mark (power) ICs to guarantee data transition and power stability, preventing overheating and auto-stop when fully charged, ensuring optimal device battery life and safety.
- Wire gauge rating: 30/32/26 and 34/34 Awg, OD: 4.8 mm.
- Transfers data between an external hard drive/ graphic card and laptop or PC at speeds up to 40 Gbps
- Charges and powers MacBook Pro, Windows laptops, or other USB Type-C or Thunderbolt 3 device from a USB Type-C wall charger.
- Flammability rating: UL 94 V-1.
- Rated voltage/current: 20V/5A.
- RoHS/REACH compliant.
$24.00 -
Sale!
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
20m (65 ft) USB 3.0 High flex Active Optical Cable (USB power adapter included)
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (330 ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Package includes:
- 1 x 20m (65ft) USB 3.0 Active Optical Cable
- 1 x USB Super Adapter for AOC
- 1 x 5V DC power adapter.
Original price was: $239.00.$209.00Current price is: $209.00. -
USB 3.0 Active Optical Cables, USB 3.1 cables
20m (65 ft) USB 3.1 Gen1 Hybrid AOC, Type-A to Micro-B, high flex
The USB 3.1 (Gen1, 5 Gbps) Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (4.0 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.1 Hybrid AOC can extend the USB 3.x bus up to 50 meters or 164 ft, with a maximum bandwidth speed of 5 Gbps and features a Micro-B connector with screw lock support, making it ideal for machine vision, industrial and robotic applications.Main Features
- Length: 20m
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.1 Type-A plug. Connector dimensions: 53mm / 19mm/ 10mm
Device side: USB 3.0 Micro-B plug with locking screws. Connector dimensions: 51.6mm / 24mm /8mm - Cable diameter: 4.0 mm
- Bend radius: 40 mm
- High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80 cycles/min
- Tensile Strength: 220NN
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: 0.95 W
- Device supply current: Max 5V – 900mA (up to 20m), 600mA (21m-50m)
- Operating conditions: -20’C -55′C, 15%-80% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$239.00 -
20m (66 ft) USB 3.0 Hybrid AOC, Type-A to Female Type-A
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (3.7 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 50 meters or 164 ft with a maximum bandwidth speed of 5 Gbps and features a female Type-A connector (with screw lock support), to which the user can attach any regular, short USB 3.0 cable of Type-A to Type-A/Type-B/Micro-B, to drive any USB 3.0 device. Alternatively, a USB 3.0 hub can be attached to which USB 2.0 and 3.0 devices can be connected for backwards, USB 2.0, compatibility.Main Features
- Length: 20m (66 ft)
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device (up to 30 meters),
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 27mm/ 13mm
- Auxiliary power supply for devices with more than 2W power dissipation via USB 2.0 Micro-B connector
- Device side: USB 3.0 Female Type-A. Connector dimensions: 82mm / 26mm /14.5mm
- Cable diameter: 4 mm
- Bend radius: Static: 40 mm, Dynamic: 80 mm
- Supply voltage: 4.75V – 5.25V
- Power dissipation: Less than 2.1W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 50′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$189.00 -
USB 3.0 Active Optical Cables, USB 3.1 cables
20m (66 ft) USB 3.1 Gen1 Hybrid AOC, Type-A to Type-C screw lock
Unibrain Type-A to Type-C hybrid Active Optical Cable (AOC) is a USB 3.1 Gen1 compliant device, supporting transmission speeds up to 5 Gbps with excellent signal quality.
Compared to traditional copper cables, which have a maximum length of up to 5m with active components, the Hybrid USB 3.1 AOC is slimmer, lighter can be extended up to 20 meters with bus power delivery and can handle much better EMI/EMC interference.The cable can be used in video conferencing applications, as security camera extensions, machine vision cameras and high speed USB 3.0/3.1 external storage.
Main Features
- Length: 20m (66 ft)
- High flex compliant, more than 10 million cycle times
- Max data speed: 5 Gbps (USB 3.1 devices),
480 Mbps for USB 2.0 devices (up to 5m) - Hot-plugging, no driver required
- Tensile strength (Long/Short term): 200N/500N
- Cable jacket material: TPU
Specifications
- Host side: USB 3.0 Type-A plug
Device side: USB 3.1 Type-C plug with screw lock support - Cable diameter: 4.9 mm +/- 0.2mm
- Bend radius: 40 mm static / 80 mm dynamic
- Supply voltage: 4.75 – 5.25 V
- Power consumption: 110 mA, 5A input
- Power output: 600 mA
- Operating conditions: -20’C – 70’C, 0%-85% humidity
- Compliance: CE/RoHS/UL 758
$189.00 -
30 cm (11.8 inch) USB 3.1 cable, Type-C to Micro-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 30cm Type-C to Micro-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$9.90 -
30 cm (11.8 inch) USB 3.1 cable, Type-C to Type-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 30cm Type-C to Type-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$10.90 -
30 cm (11.8 inch) USB-C cable, Type-C to Type-A
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 30cm Type-C to Type-A cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$9.90 -
USB 3.0 Active Optical Cables, USB 3.1 cables
30m (98 ft) USB 3.1 Gen1 Hybrid AOC, Type-A to Micro-B, high flex
The USB 3.1 (Gen1, 5 Gbps) Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (4.0 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.1 Hybrid AOC can extend the USB 3.x bus up to 50 meters or 164 ft, with a maximum bandwidth speed of 5 Gbps and features a Micro-B connector with screw lock support, making it ideal for machine vision, industrial and robotic applications.Main Features
- Length: 30 m (98 ft)
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.1 Type-A plug. Connector dimensions: 53mm / 19mm/ 10mm
Device side: USB 3.0 Micro-B plug with locking screws. Connector dimensions: 51.6mm / 24mm /8mm - Cable diameter: 4.0 mm
- Bend radius: 40 mm
- High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80 cycles/min
- Tensile Strength: 220NN
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: 0.95 W
- Device supply current: Max 5V – 600mA
- Operating conditions: -20’C -55′C, 15%-80% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$249.00 -
50 m (164 ft) USB 3.0 Hybrid AOC, Type-A to Micro-B
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (4.8 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 50 meters or 164 ft with a maximum bandwidth speed of 5 Gbps and features a Micro-B connector with screw lock support, making it ideal for machine vision & industrial applications.Main Features
- Maximum Length: 50 m (164 ft)
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 19mm/ 8mm
Device side: USB 3.0 Micro-B plug with locking screws. Connector dimensions: 49.5mm / 23.5mm /10mm - Cable diameter: 4.8 mm
- Bend radius: 50 mm
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: 0.95 W
- Device supply current: Max 5V – 900mA (up to 15m), 600mA (20m)
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$279.00 -
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
50m (164 ft) USB 3.0 High flex Active Optical Cable
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (33o ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$249.00 -
50m (164 ft) USB 3.0 Hybrid AOC, Type-A to Female Type-A
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (3.7 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 50 meters or 164 ft with a maximum bandwidth speed of 5 Gbps and features a female Type-A connector (with screw lock support), to which the user can attach any regular, short USB 3.0 cable of Type-A to Type-A/Type-B/Micro-B, to drive any USB 3.0 device. Alternatively, a USB 3.0 hub can be attached to which USB 2.0 and 3.0 devices can be connected for backwards, USB 2.0, compatibility.Main Features
- Maximum Length: 50m
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device (up to 30 meters), 600mA/5V at 50 meters
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 27mm/ 13mm
Auxiliary power supply for devices with more than 2W power dissipation via USB 2.0 Micro-B connector - Device side: USB 3.0 Female Type-A. Connector dimensions: 82mm / 26mm /14.5mm
- Cable diameter: 3.7 mm
- Bend radius: Static: 40 mm, Dynamic: 80 mm
- Supply voltage: 4.75V – 5.25V
- Power dissipation: Less than 2.1W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 50′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$239.00 -
Sale!
5m (16.4 ft) USB 3.1 Gen2 10 Gbps cable, USB-C to USB-C
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 5 meter (16.4 ft) Active USB-C Type-C to Type-C cable supports data speeds in USB 3.1 Gen1 / USB 3.1 Gen2 with transmission rate up to 10 Gbps.
Main Features:
- Double shielding for signal protection.
- RoHS/REACH compliant.
- Wire gauge rating: 24/30/30 Awg, OD: 6.0 mm
- Built-in high-speed re-timer and e-Mark (power) ICs to guarantee data transition and power stability.
- SuperSpeed+ 10Gbps data transfer (Type-C to Type-C only), ideal single-cable solution for all your data transfer needs including audio/video for Ultra-HD 4K displays, complete large store file transferring in seconds.
- Low frequency periodic signaling (LFPS) for stand-by status with lower power consumption.
- Orientation free for Host and Device Connection.
Original price was: $169.00.$129.00Current price is: $129.00. -
USB 3.2 adapters, USB 3.x/4.0 products
USB 3.2 Quad channel PCIe host adapter (3 x 10 Gbps ports, 1 x 20 Gbps USB-C port)
The USB 3.2 Quad channel PCIe adapter provides full 10 Gbps bandwidth on each USB Type-A port plus 20 Gbps (Gen2 2×2) on one USB-C port, offering the highest possible performance for high performance USB devices through a single PCI express slot.
Main specifications
- PCIe Gen3 x8 standard profile form factor.
- Four (4) downstream USB 3.2 ports: 3 x Type-A and 1 x Type-C.
- Type-A ports support USB 3.2 Gen2 data rates of up to 10 Gbps.
- Type-C port supports USB 3.2 Gen2 2×2 data rates of up to 20 Gbps.
- Backwards compatible with USb 3.x, USB 2.0 devices.
- Compliant with USB Attached SCSI Protocol Revision 1.0.
- Support Multiple INs.
- Over current protection and detection on downstream ports.
- Supports USB hot plug and USB port power directly from PCIe slot.
- CE/FCC/RoHS compliant.
Operating Systems support
- Windows 10/11, Server 2016 or later
- Linux 3.6.x or later
$249.00 -
0.2 (8 inch) IEEE-1394a cable
Unibrain’s FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
- The 0.2m 1394a cables are available with 6 to 6 pin connectors
For more information: Firewire-400 cables specifications
$8.90 -
Unibrain Firewire board & webcam
Fire-i Board Camera Color
Fire-i Board Color Digital camera is a one-board operational 1394 400 Mbps camera, complying with IIDC 1.04 specification for industrial uncompressed VGA picture acquisitions.
The latest Texas Instruments chipset and Sony Wfine CCD sensor give a high quality subassembly for OEM use.$109.00 -
Firewire Adapters, Firewire-400 (1394a) adapters
FireboardBlue-e 1394a PCI-express adapter (new model)
FireboardBlue-e is a 3 port, OHCI compliant ΙΕΕΕ 1394a PCI express adapter that provides plug ‘n’ play connectivity for FireWire-400 devices and peripherals.
Specifications:
- New generation 1394a PCI express adapter using TI
TSB43AB23 1394 PHY/Link controller combined with TI XIO2001 PCI-e to PCI translation bridge. - 2 external and 1 internal FireWire ports with 100/200/400 Mbps throughput.
- OHCI compliant/Compatible with any FireWire-400 device or peripheral.
- ‘Big IDE’ (Molex) internal power connector.
- 4 isochronous transmit/receive DMA channels.
- Operating power consumption 2.5W.
With 4-pin Molex connector the maximum Vbus power per port is 18W and total deliverable Vbus power is 54W. - Low profile bracket included.
- CE/FCC/RoHS certified.
Software support:- Windows 7/8/10, 32/64 bit editions
- Mac OS 10.4.x or later
- Linux
$49.00 - New generation 1394a PCI express adapter using TI
-
0.2m (0.66 ft) IEEE-1394b cable
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise. \
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
- The 0.2m cable is available with 9 pin to 9 pin connectors
$14.00 -
Unibrain Firewire board & webcam
Fire-i Board Camera B/W
Fire-i Board B/W digital camera is a one-board operational 1394 400 Mbps camera, complying with IIDC 1.04 specification for industrial uncompressed VGA picture acquisitions.
The latest Texas Instruments chipset and Sony ICX098BL CCD sensor give a high quality subassembly for OEM use.$169.00 -
Fireboard800-e V.3 1394b PCI express adapter
Unibrain Fireboard800-e™ V.3 next generation Firewire-800 PCI express adapter is based on the Texas Instruments XIO2213B integrated PCI-e to 1394b OHCI (open host controller/link-layer) controller.
The card features two external fully backward compatible, Bilingual 1394b, 9 pin ports with support of 100/200/400/800 Megabits per second data transfers.$49.00 -
0.4m (1.3 ft) IEEE-1394b cable
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 0.4m cable is available with 9 pin to 9 pin connectors.
For more information: Firewire-800 cables specifications
$14.00 -
Unibrain Firewire board & webcam
Fire-i board camera color RAW
Fire-i Board ColorRAW Digital camera is a one-board operational 1394 400 Mbps camera, complying with IIDC 1.04 specification for industrial uncompressed VGA picture acquisitions.
The latest Texas Instruments chipset and Sony Wfine CCD sensor give a high quality subassembly for OEM use.$109.00 -
Fireboard-Blue 1394a PCI adapter (bulk)
FireBoard Blue™ is a 3-port, single chip, OHCI-compliant 1394/FireWire® host adapter that provides plug ‘n’ play connectivity for FireWire devices and peripherals.
$30.00 -
0.5m (1.6 ft) IEEE-1394a cable, 6p to 6p
Unibrain’s FireWire-400 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 0.5m Firewire-400 (IEEE-1394a) cable is available with 6 to 6 pin connectors.
$9.00 -
Unibrain Firewire board & webcam
Fire-i board color camera, remote CCD
The Fire-i™ Digital Board Camera Remote CCD has exactly the same features and functionality as the Fire-i™ Digital Board Camera™, along with the possibility to extend the CCD to a remote distance and place the lens into a small volume.
This Fire-i™ Digital Board Camera Remote CCD is the ideal camera for industrial and/or robotic applications that require fixed position of the main camera board and unique placement of just the CCD part.
The remote board comes with the standard M12x0.5 lens holder and all Unibrain (and third party compliant) micro-lenses can be used.$129.00 -
Unibrain Firewire board & webcam
Fire-i board b/w camera, remote CCD
The Fire-i™ Digital Board Camera Remote CCD has exactly the same features and functionality as the Fire-i™ Digital Board Camera™, along with the possibility to extend the CCD to a remote distance and place the lens into a small volume.
This Fire-i™ Digital Board Camera Remote CCD is the ideal camera for industrial and/or robotic applications that require fixed position of the main camera board and unique placement of just the CCD part.
The remote board comes with the standard M12x0.5 lens holder and all Unibrain (and third party compliant) micro-lenses can be used.$149.00 -
Sale!
Fireboard-800 V.3 64 bit 1394b PCI adapter
Unibrain Fireboard-800™ V.3 64 bit 1394b PCI adapter is based on the dual chip Texas Instruments solution, of TSB82AA2B OHCI controller and TSB81BA3D 3 port transeiver S800 PHY.
Original price was: $59.00.$39.00Current price is: $39.00. -
Fireboard800-e Pro Dual™ channel 1394b to PCIe adapter
Fireboard800-e Pro DualTM is a four (4) port, dual bus PCIe host adapter ideal for multi-camera acquisition systems that require fast and reliable data transfers to the host system. The card allows simultaneous image acquisition from up to 8 cameras at total data throughput of 160 MB/sec using a single x1 PCIe slot, and utilizes deep isochronous FIFO’s that guarantee an uninterrupted data flow.
$169.00 -
10 m (33 ft) Firewire-400 (IEEE-1394a) cable 6 pin to 6 pin
Unibrain’s FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 10m 1394a cable is available with 6 pin to 6 pin (part number #1600 – this product) and 6 pin to 4 pin (i-Link) connectors (part number #1608).
For more information: Firewire-400 cables specifications
$39.00 -
10m (33 ft) Firewire-400 (IEEE-1394a) cable, 6 pin to 4 pin
Unibrain’s FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 10m 1394a cable is available with 6 pin to 6 pin (part number #1600) and 6 pin to 4 pin (i-Link) connectors (part number #1608, this product).
For more information: Firewire-400 cables specifications
$29.00 -
Unibrain Firewire board & webcam
Dual Port Fire-i Board Camera Color
Dual Port Fire-i™ board camera is a new version of Fire-i™ board camera color, in which the daughterboard that hosts the second firewire port has been eliminated and instead the two firewire ports are now soldered on the main camera body.
$109.00 -
10m (33 ft) IEEE-1394b 9p to 9p screw lock cable
The new 10m ( 33 ft) IEEE-1394b 9-pin to 9-pin cable, comes with standard 1394b lock connectors on both ends.
The cable is compatible with all 1394b screw lock compliant ports and devices.
All Unibrain 1394b firewire adapters, support screw lock connectors too.
The cable is equipped with high quality shielding and ferrites for the best possible EMI & noise suppression.For more information: Firewire-800 cables specifications
$49.00 -
FireboardBlue-e 1394a PCI-express adapter (old model)
Note: The product is at End of Life.
The adapter is replaced by newer model: https://store.unibrain.com/shop/firewire/firewire-adapters/firewire-400-1394a-adapters/fireboardblue-e-1394a-pci-express-adapter-new-model/.FireboardBlue-e is a 2 port, single chip, OHCI compliant 1394a PCI express adapter that provides plug ‘n’ play connectivity for FireWire-400 devices and peripherals.
$49.00 -
10m (33 ft) IEEE-1394b cable, 9 pin to 6 pin
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 10m (33 ft) 1394b cable is available with 9 to 6 pin bilingual connectors (this product) or 9 to 9 pin beta connectors (order part #1636).
For more information: Firewire-800 cables specifications
$45.00 -
10m (33 ft) IEEE-1394b cable, 9 pin to 9 pin
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 10m (33 ft) 1394b cable is available with 9 to 9 pin beta connectors (this product) or 9 to 6 pin bilingual connectors (order part #1637).
For more information: Firewire-800 cables specifications
$45.00 -
10m (33 ft) USB 3.0 Active Optical Cable
The Unibrain USB 3.0 Active Optical Cable (AOC) was designed to be compliant with SuperSpeed USB specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs & devices.
With an ultra thin profile (just 3mm OD), the Unibrain USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices to a whole new range of applications, such as long distance machine vision, security & High Definition surveillance, industrial & medical machine control.
The USB 3.0 Active Optical Cables are also ideal for applications that have strict EMI/RFI requirements.$189.00 -
6 ft (1.83m) USB 3.0 Active Optical Cable
The Unibrain USB 3.0 Active Optical Cable (AOC) was designed to be compliant with SuperSpeed USB specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs & devices.
With an ultra thin profile (just 3mm OD), the Unibrain USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices to a whole new range of applications, such as long distance machine vision, security & High Definition surveillance, industrial & medical machine control.
The USB 3.0 Active Optical Cables are also ideal for applications that have strict EMI/RFI requirements.$115.00 -
10m (33 ft) USB 3.0 cable Type-A to Micro-B screw lock active
10m (33 feet) USB 3.0 active cable, with Type-A to Micro-B with screw lock connector. Provides additional Type-A split power port for the cases that additional external power is required. This port plugs to a second USB (USB 3.0 or USB 2.0) port on the PC side.
$119.00 -

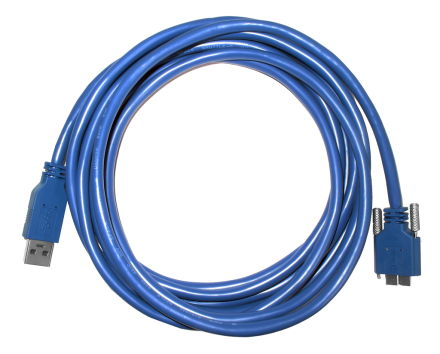

12 inch USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
The 12 inch (305 mm) cable prevents cable clutter on short distance installations.
$8.90 -
Accessories for Unibrain industrial cameras
12 pin Hirose trigger connector
6 pin female Hirose trigger connector for Unibrain camera models Fire-i 530/630/830
$10.00 -
Miniature lenses for Fire-i board cameras
12mm Telephoto Lens
Miniature (M12 x 0.5) 12mm, F2.0, lens.
$19.90 -
1m (3.3 ft) IEEE-1394a cable
Unibrain’s FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
- The 1m 1394a cables are available with 6 to 6 pin connectors.
For more information: Firewire-400 cables specifications
$10.00 -
1m (3.3 ft) IEEE-1394b, 9p to 9p screw lock cable
The new 1m (3.3 ft) IEEE-1394b 9-pin to 9-pin cable, comes with standard 1394b lock connectors on both ends.
The cable is compatible with all 1394b screw lock compliant ports and devices.
All Unibrain 1394b firewire adapters, support screw lock connectors too.
The cable is equipped with high quality shielding and ferrites for the best possible EMI & noise suppressionFor more information: Firewire-800 cables specifications
$19.00 -
1m (3.3 ft) IEEE-1394b cable, 9 pin to 9 pin
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 1m (3.3 ft) 1394b cable is available with 9 to 9 pin connectors.
For more information: Firewire-800 cables specifications
$17.00 -
1m (3.3 ft) USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
$9.90 -
Sale!
20m (66 ft) USB 3.0 Active Optical Cable
The Unibrain USB 3.0 Active Optical Cable (AOC) was designed to be compliant with SuperSpeed USB specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs & devices.
With an ultra thin profile (just 3mm OD), the Unibrain USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices to a whole new range of applications, such as long distance machine vision, security & High Definition surveillance, industrial & medical machine control.
The USB 3.0 Active Optical Cables are also ideal for applications that have strict EMI/RFI requirements.Cable Specification
- Fiber type: Multimode glass fiber x 2
- Material: LSZH (Low Smoke Zero Halogen)
- Diameter: 3 mm +/- 0.1mm
- Maximum tensile load: 200N
- Minimum bend radius: 7.5 mm
- Operating temperature: -20’C up to +70’C
Original price was: $239.00.$199.00Current price is: $199.00. -
2 m (6.6 ft) Firewire-400 (IEEE-1394a) cable
Unibrain's FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 10m 1394a cables are available with 6 to 6 pin and 6 to 4 pin (i-Link) connectors.
$12.00 -
2m (6.6 ft) IEEE-1394b 9p to 9p screw lock cable
The new 2m (6.6 ft) IEEE-1394b 9-pin to 9-pin cable, comes with standard 1394b lock connectors on both ends.
The cable is compatible with all 1394b screw lock compliant ports and devices.
All Unibrain 1394b firewire adapters, support screw lock connectors too.
The cable is equipped with high quality shielding and ferrites for the best possible EMI & noise suppression.For more information: Firewire-800 cables specifications
$22.00 -
2m (6.6 ft) IEEE-1394b cable, 9 pin to 6 pin
Unibrain’s FireWire 800 (IEEE-1394) cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire-800 standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 2m (6.6 ft) 1394b cable is available with 9 to 9 pin beta (order part #1632) or 9 to 6 pin bilingual connectors (order part #1633 – this product).
$20.00 -
2m (6.6 ft) IEEE-1394b cable, 9 pin to 9 pin
Unibrain’s FireWire 800 (IEEE-1394) cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire-800 standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 2m (6.6 ft) 1394b cable is available with 9 to 9 pin beta (this product) or 9 to 6 pin bilingual connectors (order part #1633).
$20.00 -
3 meters (10 ft) USB 3.0 cable Type-A to Micro-B 90 degree angled with screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
This cable features a 90 degree vertical Micro-B connector.$25.00 -
USB 3.0 cables, USB 3.x/4.0 products
3 meters (10 ft) USB 3.0 cable Type-A to Micro-B horizontal angle screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
The angled Micro-B USB 3.0 connector offers further versatility on tighter space wise installations.$25.00 -
3 meters (10 ft) USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
$16.90 -
Miniature lenses for Fire-i board cameras
4.3mm miniature Lens, F1.8 with IR filter
Lens Specifications:
- Format : 1/3 ” 1/4″
- Focal Length (mm): 4.3 mm
- Back Focal Length (mm): 6.16 mm +/- 5%
- Aperture (F): 1.8
- IR filter coating: Yes
- Angle of View:
(Horizontal) 1/4″: 49.2′, 1/3″: 73.7′
(Vertical) 1/4″: 36′, 1/3″ 47.3′ - Lens construction: 4-4
- Minimum object distance: 30 cm
- Weight: 4.0 gr
MTF (modulation transfer function):
$22.00 -
4.5 m (15 ft) 1394a latch cable
Unibrain’s FireWire cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The new 4.5 m 1394a latch cable is available with 6 pin to 6 pin latch/lock connector.
For more information: Firewire-400 cables specifications
$20.00 -
4.5 m (15 ft) Firewire-400 (IEEE-1394a) cable
Unibrain's cables meet TIA/EIA 568-A proposed category 5E for all parameters except impedance which is 110 Ohm +- 10% for all frequencies between 100MHz and 400MHz.
The 4.5m 1394a cables are available with 6 to 6 pin and 6 to 4 pin (i-Link) connectors.
Please make sure to select option “6p to 4p” if you want the i-Link type of cable.For more information: Firewire-400 cables specifications
$14.00 – $16.00 -
4.5m (15 ft) IEEE-1394b 9p to 9p screw lock cable
The new 4.5m (15 ft) IEEE-1394b 9-pin to 9-pin cable, comes with standard 1394b lock connectors on both ends.
The cable is compatible with all 1394b screw lock compliant ports and devices.
All Unibrain 1394b firewire adapters, support screw lock connectors too.
The cable is equipped with high quality shielding and ferrites for the best possible EMI & noise suppression.For more information: Firewire-800 cables specifications
$32.00 -
4.5m (15 ft) IEEE-1394b cable, 9 pin to 6 pin
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire-800 standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 4.5m (15 ft) 1394b cable is available with 9 to 9 pin beta connectors (order part# 1634) or 9 to 6 pin bilingual connectors (this product).
$25.00 -
4.5m (15 ft) IEEE-1394b cable, 9 pin to 9 pin
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire-800 standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
The 4.5m (15 ft) 1394b cable is available with 9 to 9 pin beta connectors (this product) or 9 to 6 pin bilingual connectors (order part #1635).
$25.00 -
Firewire-800 (1394b) 'smart' cables
40m (131 ft) Firewire-800 ‘Smart’ Cable
Unibrain introduces a new family of long Firewire-800™ cables.
The Long “Smart” Firewire-800™ cables can extend your firewire topology to distances up to 40 meters (130 ft) without the use of repeaters or Bus extenders, via a single, thin 75 Ohm coaxial type cable$189.00 -
50m (164 ft) USB 3.0 Active Optical Cable (USB power adapter included)
Note: This product is replaced by newer model:
https://store.unibrain.com/shop/usb3x-products/usb-3-0-active-optical-cables/50m-164-ft-usb-3-0-high-flex-active-optical-cable/The Unibrain USB 3.0 Active Optical Cable (AOC) was designed to be compliant with SuperSpeed USB specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs & devices.
With an ultra thin profile (just 3mm OD), the Unibrain USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices to a whole new range of applications, such as long distance machine vision, security & High Definition surveillance, industrial & medical machine control.
The USB 3.0 Active Optical Cables are also ideal for applications that have strict EMI/RFI requirements.Cable Specification
- Fiber type: Multimode glass fiber x 2
- Material: LSZH (Low Smoke Zero Halogen)
- Diameter: 3 mm +/- 0.1mm
- Maximum tensile load: 200N
- Minimum bend radius: 7.5 mm
- Operating temperature: -20’C up to +70’C
$299.00 -
5 meters (16.4 ft) USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
$19.90 -
Sale!
5 meters (16.4 ft) USB 3.0 cable Type-A to Type-B
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications feature rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
The 5m Type-A to Type-B cable is ideal for long connectivity via USB 3.0 hubs or devices which have a Type-B input port, like PhaseOne IQ1 series digital camera backs.Original price was: $19.90.$15.90Current price is: $15.90. -
6 inch USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
The 6 inch (150 mm) cable prevents cable clutter on short distance installations.
$8.90 -
7.7m (25 ft) IEEE-1394b 9p to 9p screw lock cable
The new 7.7m ( 25 ft) IEEE-1394b 9-pin to 9-pin cable, comes with standard 1394b lock connectors on both ends.
The cable is compatible with all 1394b screw lock compliant ports and devices.
All Unibrain 1394b firewire adapters, support screw lock connectors too.
The cable is equipped with high quality shielding and ferrites for the best possible EMI & noise suppression.For more information: Firewire-800 cables specifications
$40.00 -
7.7m (25 ft) IEEE-1394b cable
Unibrain’s FireWire 800 cables offer superior features, due to better connectors, shielding and storage conditions:
- Top quality connectors with high-density enclosures to eliminate an often under estimated source of noise.
- Outer shield and inner (foil and braid) ensures compliance with the latest FireWire standards, which reduces radio frequency and electro-magnetic interference.
- Careful storage and shipment procedures ensure that performance is not affected by accidental excessive bend radius.
This long, 25 ft (7.7m ) 1394b cable, offers the most reliable combination of performance and legth, for the most demanding IEEE-1394.b industrial applications.
For more information: Firewire-800 cables specifications
$35.00 -
7m (23 ft) USB 3.0 cable Type-A to Micro-B screw lock
Unibrain’s USB 3.0 cables are optimized for Industrial and Machine Vision applications featuring screw lock Micro-B USB connectors, rugged construction and increased shielding for reducing radio frequencies and electro-magnetic interference.
The 7m/23ft cable has been extensively tested with USB 3.0 cameras from Point Grey, Basler & Ximea and with external USB 3.0 hard drives, both self powered and bus powered (WD Passport, Seagate GoFlex).
$69.00 -
Fire-i / FireAPI SDK software license
Software activation runtime license for all Unibrain SDKs (FireAPI, Fire-i API) and Fire-i application.
The license activates the drivers per firewire adapter or firewire IIDC camera (customer choice).The GUID (Globally Unique Identifier) of the device must be provided to Unibrain and then we will return to the customer the activation code. The device GUID can be obtained from Fire-i or FireAPI authorize utilities, as described here: Unibrain SDKs and licensing information.
After your online order is confirmed, please email us the online receipt at Customer Service Email, along with the GUID(s) of your devices, and we will email you the activation code(s).
$69.00 -
Unibrain ultra compact firewire cameras, Bonsai series
Fire-i 530b b/w ultra compact camera (VGA, 86 fps)
The new Fire-i 530b monochrome firewire industrial camera incorporates a 1/3″ VGA Wfine, progressive scan CCD and is housed in an ultra small and lightweight industrial housing.
$690.00 -
Unibrain 1394b (Firewire-800) cameras, Juniper series
Fire-i 580b b/w camera (VGA, 86 fps)
The new line up of Unibrain 1394b cameras, with a number of resolutions and frame rates to choose from, has made selecting the right camera for machine vision applications easy.
Combined with Unibrain’s advanced, high performance 1394b driver stack and dual ports it offers an excellent combination for multi camera connectivity.
The Fire-i 580b VGA monochrome camera incorporates a 1/3″ Progressive Scan Sony CCD and achieves up to 86 fps at maximum resolution.
By utilizing the IEEE 1394b interface that supports the IIDC protocol, users can transfer images to a host PC at speeds of up to 800 Mbps.
Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system.$599.00 -
Unibrain 1394b (Firewire-800) cameras, Juniper series
Fire-i 580c color camera (VGA, 86 fps)
The new line up of Unibrain 1394b cameras, with a number of resolutions and frame rates to choose from, has made selecting the right camera for machine vision applications easy.
Combined with Unibrain’s advanced, high performance 1394b driver stack and dual ports it offers an excellent combination for multi camera connectivity.
The Fire-i 580c VGA color camera incorporates a 1/3″ Progressive Scan Sony CCD and achieves up to 86 fps at maximum resolution.
By utilizing the IEEE 1394b interface that supports the IIDC protocol, users can transfer images to a host PC at speeds of up to 800 Mbps.
Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system.$599.00 -
Unibrain 1394b (Firewire-800) cameras, Juniper series
Fire-i 785b b/w camera (SXGA, 30 fps)
The new line up of Unibrain 1394b cameras, with a number of resolutions and frame rates to choose from, has made selecting the right camera for machine vision applications easy.
Combined with Unibrain’s advanced, high performance 1394b driver stack and dual ports it offers an excellent combination for multi camera connectivity.
The Fire-i 785b SXGA monochrome camera incorporates a new 1/3″ Progressive Scan Sony CCD and achieves up to 30 fps at maximum resolution.
By utilizing the IEEE 1394b interface that supports the IIDC protocol, users can transfer images to a host PC at speeds of up to 800 Mbps.
Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system.$790.00 -
Unibrain ultra compact firewire cameras, Bonsai series
Fire-i 830b b/w ultra compact camera (2 Mpixels, 16 fps)
The new Fire-i 830b monochrome firewire industrial camera incorporates a 1/1.8″ 2 Mpixels Wfine, progressive scan CCD and is housed in an ultra small and lightweight industrial housing.
$1,790.00 -
Unibrain ultra compact firewire cameras, Bonsai series
Fire-i 830c color ultra compact camera (2 Mpixels, 16 fps)
The new Fire-i 830c color firewire industrial camera incorporates a 1/1.8″ 2 Mpixels Wfine, progressive scan CCD and is housed in an ultra small and lightweight industrial housing.
$1,990.00 -
Fire-i board camera lens holder
Board camera lens holder, M12x0.5 compliant.
This lens base is suitable for all Unibrain miniature lenses.$2.50 -
Fire-i camera tripod kit
Special adapter and tripod for the Unibrain Fire-i digital camera.
The kit includes:
• Tripod adaptor with standard photographic screw (compatible with tripods and wall /ceiling mounting fixations).
• mini-tripod with telescopic legs.$12.00 -
Unibrain hardware SDK licenses
Fireboard-800 V.3 1394b PCI adapter w/ FireAPI license
Unibrain Fireboard-800™ V.3 64 bit 1394b PCI adapter is based on the dual chip Texas Instruments solution, of TSB82AA2B OHCI controller and TSB81BA3D 3 port transeiver S800 PHY.
$109.00 -
Unibrain hardware SDK licenses
Fireboard-Blue 1394a PCI adapter w/ FireAPI license
FireBoard Blue™ is a 3-port, single chip, OHCI-compliant 1394/FireWire® host adapter that provides plug ‘n’ play connectivity for FireWire devices and peripherals.
$99.00 -
Unibrain hardware SDK licenses
Fireboard800-e 1394b PCI express adapter w/ FireAPI license
Unibrain Fireboard800-e™ V.3 next generation Firewire-800 PCI express adapter is based on the Texas Instruments XIO2213B integrated PCI-e to 1394b OHCI (open host controller/link-layer) controller.
The card features two external fully backward compatible, Bilingual 1394b, 9 pin ports with support of 100/200/400/800 Megabits per second data transfers.This board is delivered with a built-in hardware key that unlocks Unibrain’s Windows 1394b (Firewire-800) drivers and acts as a license for FireAPI Development Toolkit.
$109.00 -
Unibrain hardware SDK licenses
Fireboard800-e Pro Dual™ 1394b PCIe adapter w/ FireAPI license
Fireboard800-e Pro DualTM is a four (4) port, dual channel PCIe host adapter ideal for multi-camera acquisition systems that require fast and reliable data transfers to the host system. The card allows simultaneous image acquisition from up to 8 cameras at total data throughput of 160 MB/sec using a single x1 PCIe slot, and utilizes deep isochronous FIFOs that guarantee an uninterrupted data flow.
$259.00 -
Unibrain hardware SDK licenses
FireboardBlue-e 1394a PCI-e adapter with SDK license
FireboardBlue-e is a 3 port, OHCI compliant ΙΕΕΕ 1394a PCI express adapter that provides plug ‘n’ play connectivity for FireWire-400 devices and peripherals.
This board is delivered with a built-in hardware key that unlocks Unibrain’s ubCore drivers and acts as a license for FireAPI Development Toolkit.Features:
- New generation 1394a PCI express adapter using TI
TSB43AB23 1394 PHY/Link controller combined with TI XIO2001 PCI-e to PCI translation bridge. - 2 external and 1 internal FireWire ports with 100/200/400 Mbps throughput.
- OHCI compliant/Compatible with any FireWire-400 device or peripheral.
- ‘Big IDE’ (Molex) internal power connector.
- 4 isochronous transmit/receive DMA channels.
- Operating power consumption 2.5W.
$129.00 - New generation 1394a PCI express adapter using TI
-
FireRepeater-800, 3 port Firewire-800 (IEEE-1394b) repeater
FireRepeater-800™ is a 3-port, pocket-size, Firewire-800 hub that allows you to:
- add a connection point into an existing link.
- extend FireWire Cable lengths (tested up to 110 meters or 360 feet).
- add or reinforce DC Power Supply capability of your FireWire connection using the optional 12V DC power adapter can be used.
$79.00 -
Firewire 6 pin to 4 pin 1394a cable converter
Firewire 6pin to 4pin (i-Link) 1394a cable converter.
Permits you to use a 6pin cable with notebook & DV camcorders firewire ports.$6.00 -
GOF Repeater800™ 1394b Glass Optical Fiber Repeater kit
Unibrain provides the latest in Firewire800 – 1394b and optical technology, the Glass Optical Fiber (GOF) Repeater, that extends the S800 (800Mbps) transmission of 1394b bus up to 550 meters (~1,800 ft) distance over dual mode Fiber Optic cable.
Each GOF Repeater800™ unit has two 1394b bilingual copper ports and one optical LC type port.$769.00 -
Firewire Cables & Repeaters, Repeaters
GOF Repeater800™ 1394b Glass Optical Fiber Repeater (single unit)
Unibrain provides the latest in Firewire800 – 1394b and optical technology, the Glass Optical Fiber (GOF) Repeater, that extends the S800 (800Mbps) transmission of 1394b bus up to 550 meters (~1,800 ft) distance over dual mode Fiber Optic cable.
Each GOF Repeater800™ unit has two 1394b bilingual copper ports and one optical LC type port.$375.00 -
Plastic housing for Fire-i board camera
A low cost housing solution for the Fire-i board cameras family.
This plastic housing is the same used in Unibrain Fire-i camera.$10.00 -
Power adapter for Unibrain USB 3.0 hubs
Spare Power adapter for Unibrain USB 3.0 hubs.
Comes with EU or US wall plug, depending on the region of sale.$10.00 -
Power supply adapter 12V
This versatile adapter, suitable for USA, Asia and European electrical networks, provides up to 3A stable regulated 12V DC output.
For use with Unibrain Fire Repeaters and Fire-i Digital cameras . It provides power for firewire devices on laptops that do not provide power through the firewire ports and can provide additional power for devices connected in an extended link to desktop systems.
Provided with appropriate power cord for the electrical network of your region (US or Euro wall plug).$25.00 -
Accessories for Unibrain industrial cameras
Tripod adapter for Unibrain Bonsai firewire cameras
Tripod adapter mount for Unibrain camera models Fire-i 530/630/830.
$10.00 -
Sale!
Unibrain 4 ports USB 3.0 hub
Unibrain’s USB 3.0 hub is a high performance device that can accommodate the full load of up to 5 Gbps from 4 USB 3.0 devices.
The hub features 4 downstream Type-A USB 3.0 ports and 1 upstream Type-B port for connection to the computer.Original price was: $25.00.$14.90Current price is: $14.90. -
Unibrain Fire-i API™ development kit
Fire-i API is a complete SDK for developing and debugging professional applications for 1394 IIDC Digital Cameras.
$190.00 -
Unibrain Firewire board & webcam
Unibrain Fire-i Digital Camera
The Fire-i Digital Camera is the best home/office firewire camera available in the market. Its superior performance clearly distinguishes it from other Firewire or USB cameras.
With a crystal clear 640×480, 30 fps resolution and 400 Mbps transfer rate, the Fire-i Digital Camera is ideal for Video conferencing, Video capturing, Surveillance and Monitoring applications.
Its compact size and very low power consumption make Fire-i the perfect companion for all Desktop and Portable computers.$129.00 -
General Purpose 1394a/1394b SDK
Unibrain FireAPI™ development kit
The FireAPI™ SDK provides software developers with all the tools they need for developing and debugging any 1394 application in the Windows environment.
It is based on Unibrain`s 1394 Stack Technology (ubCore™), the next generation of innovative 1394a (Firewire-400) and 1394b (Firewire-800) driver suite for the Windows platform.
Moreover, it is the only 1394 SDK providing a complete User Mode interface to the developer and a collection of diagnostic utilities.For more information: FireAPI SDK product home page
$490.00 -
USB adapter for AOC
The USB “Super” adapter adds USB 2.0 support to the Active Optical Cables (AOC) while still allowing USB 3.0 SuperSpeed connections.
It comes with a power adapter which can be used for powering the bus for devices that are bus powered. The power adapter is not required for self powered USB devices.Note: Τhe adapter is included already with all USB 3.0 Active Optical Cables and should not be purchased separately.
$69.00
