FireRepeater-800, 3 port 1394b repeater

FireRepeater-800, 3 port Firewire-800 (IEEE-1394b) repeater

$79.00

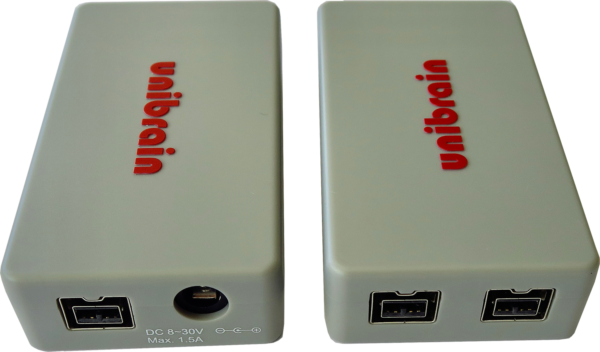

FireRepeater-800™ is a 3-port, pocket-size, Firewire-800 hub that allows you to:

  • add a connection point into an existing link.
  • extend FireWire Cable lengths (tested up to 110 meters or 360 feet).
  • add or reinforce DC Power Supply capability of your FireWire connection using the optional 12V DC power adapter can be used.

Available on backorder

Product is currently out of stock. We expect sales to resume by early October.
SKU: 2501 Category:

Description

Features

  • FireRepeater 800™ provides Three Fully backward compatible, (1394a-2000 Fully-Compliant) Bilingual 1394b Cable Ports at up to 800 Megabits per Second (Mbits/s).
  • Fully Supports Provisions of IEEE P1394b revision 1.20 at 1 Gigabit Signaling Rates.
  • Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard for High Performance Serial Bus.
  • External 8-40V power supply input (power adapter not included).
  • Compact size: 8.4 x 4.56 x 1.95 cm
  • Shielded plastic case.
