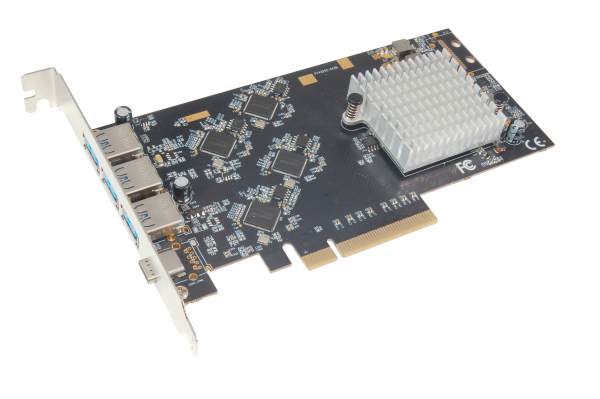

USB 3.2 Quad channel PCIe host adapter (3 x 10 Gbps ports, 1 x 20 Gbps USB-C port)
$249.00
The USB 3.2 Quad channel PCIe adapter provides full 10 Gbps bandwidth on each USB Type-A port plus 20 Gbps (Gen2 2×2) on one USB-C port, offering the highest possible performance for high performance USB devices through a single PCI express slot.
Main specifications
- PCIe Gen3 x8 standard profile form factor.
- Four (4) downstream USB 3.2 ports: 3 x Type-A and 1 x Type-C.
- Type-A ports support USB 3.2 Gen2 data rates of up to 10 Gbps.
- Type-C port supports USB 3.2 Gen2 2×2 data rates of up to 20 Gbps.
- Backwards compatible with USb 3.x, USB 2.0 devices.
- Compliant with USB Attached SCSI Protocol Revision 1.0.
- Support Multiple INs.
- Over current protection and detection on downstream ports.
- Supports USB hot plug and USB port power directly from PCIe slot.
- CE/FCC/RoHS compliant.
Operating Systems support
- Windows 10/11, Server 2016 or later
- Linux 3.6.x or later
9 in stock
