0.5m (1.6ft) USB 3.1 cable, Type-C to Type-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 50cm Type-C to Type-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$11.00 -
Sale!
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
100m (328 ft) USB 3.0 high flex Active Optical Cable (USB power adapter included)
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (33o ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Package includes:
- 1 x 100m (328 ft) USB 3.0 Active Optical Cable
- 1 x USB Super Adapter for AOC
- 1 x 5V DC power adapter.
Original price was: $399.00.$359.00Current price is: $359.00. -
USB 3.0 Active Optical Cables, USB 3.x/4.0 products
10m (33 ft) USB 3.0 High flex Active Optical Cable (USB power adapter included)
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50 mm radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in environment with high EMI and RFI.
Main Features
- Maximum Length: 100 meters (330 ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
Specifications
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 30 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Package includes:
- 1 x 10m (33 ft) USB 3.0 Active Optical Cable
- 1 x USB Super Adapter for AOC
- 1 x 5V DC power adapter
$199.00 -
10m (33 ft) USB 3.0 Hybrid AOC, Type-A to Female Type-A
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (3.7 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 50 meters or 164 ft with a maximum bandwidth speed of 5 Gbps and features a female Type-A connector (with screw lock support), to which the user can attach any regular, short USB 3.0 cable of Type-A to Type-A/Type-B/Micro-B, to drive any USB 3.0 device. Alternatively, a USB 3.0 hub can be attached to which USB 2.0 and 3.0 devices can be connected for backwards, USB 2.0, compatibility.Main Features
- Length: 10m (33 ft)
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device (up to 30 meters),
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 27mm/ 13mm
- Auxiliary power supply for devices with more than 2W power dissipation via USB 2.0 Micro-B connector
- Device side: USB 3.0 Female Type-A. Connector dimensions: 82mm / 26mm /14.5mm
- Cable diameter: 4 mm
- Bend radius: Static: 40 mm, Dynamic: 80 mm
- Supply voltage: 4.75V – 5.25V
- Power dissipation: Less than 2.1W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 50′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
Fiber specification
$179.00 -
10m (33 ft) USB 3.0 Hybrid AOC, Type-A to Micro-B, high flex
The USB 3.0 Hybrid Active Optical cables resolve one limitation of pure optical cables which cannot supply power to the end device.
On the basis of the use of a thin profile (4 mm) optical fiber as the transmission medium, the Hybrid AOC integrates copper to supply power both the active components of the cable and the device(s), in the case they are bus powered.
The USB 3.0 Hybrid AOC can extend the USB 3.0 bus up to 20 meters or 66 ft with a maximum bandwidth speed of 5 Gbps and features a Micro-B connector with screw lock support, making it ideal for machine vision, industrial and robotic applications.Main Features
- Maximum Length: 20m
- Maximum transmission speed: 5 Gbps
- Maximum power: 900mA/5V for the device
- Hot-plugging, no driver required
Specifications
- Host side: USB 3.0 Type-A plug. Connector dimensions: 44mm / 19mm/ 8mm
Device side: USB 3.0 Micro-B plug with locking screws. Connector dimensions: 49.5mm / 23.5mm /10mm - Cable diameter: 4.8 mm
- Bend radius: 50 mm
- High flex rated for for >20 million cycles for bending stroke of 1m, velocity 80 cycles/min
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: 0.95 W
- Device supply current: Max 5V – 900mA (up to 15m), 600mA (20m)
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
$189.00 -
USB 3.0 Active Optical Cables, USB 3.1 cables
10m (33 ft) USB 3.1 Gen1 Hybrid AOC, Type-A to Type-C screw lock
Unibrain Type-A to Type-C hybrid Active Optical Cable (AOC) is a USB 3.1 Gen1 compliant device, supporting transmission speeds up to 5 Gbps with excellent signal quality.
Compared to traditional copper cables, which have a maximum length of up to 5m with active components, the Hybrid USB 3.1 AOC is slimmer, lighter can be extended up to 20 meters with bus power delivery and can handle much better EMI/EMC interference.The cable can be used in video conferencing applications, as security camera extensions, machine vision cameras and high speed USB 3.0/3.1 external storage.
Main Features
- Length: 10m (33 ft)
- High flex compliant, more than 10 million cycle times
- Max data speed: 5 Gbps (USB 3.1 devices),
480 Mbps for USB 2.0 devices (up to 5m) - Hot-plugging, no driver required
- Tensile strength (Long/Short term): 200N/500N
- Cable jacket material: TPU
Specifications
- Host side: USB 3.0 Type-A plug
Device side: USB 3.1 Type-C plug with screw lock support - Cable diameter: 4.9 mm +/- 0.2mm
- Bend radius: 40 mm static / 80 mm dynamic
- Supply voltage: 4.75 – 5.25 V
- Power consumption: 110 mA, 5A input
- Power output: 900 mA
- Operating conditions: -20’C – 70’C, 0%-85% humidity
- Compliance: CE/RoHS/UL 758
$169.00 -
1m (3.3 ft) USB 3.1 cable, Type-C to Micro-B
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 1m Type-C to Micro-B cable supports data speeds in USB 2.0 / USB 3.1 Gen1 with transmission rate up to 5 Gbps.
$10.90 -
1m (3.3 ft) USB 3.1 Gen2 10 Gbps cable, USB-C to USB-C
Unibrain’s USB 3.1 cables are USB-IF certified, designed for industrial and professional applications and come to a variety of lengths and connector options.
The 1m (3.3 ft) USB-C Type-C to Type-C cable supports data speeds in USB 2.0 / USB 3.1 Gen1 / USB 3.1 Gen2 with transmission rate up to 10 Gbps .
Main Features:
- Double shielding for signal protection.
- RoHS/REACH compliant.
- The USB 3.1 Gen2 cables support a maximum power delivery up to 100W (20V/5A) with E-marker chip automatically adjust current.
- SuperSpeed+ 10Gbps data transfer (Type-C to Type-C only), ideal single-cable solution for all of your data transfer needs including audio/video for Ultra-HD 4K displays, complete large store file transferring in seconds.
- Maximum length: 3.3 ft (100 cm)
$19.90 -

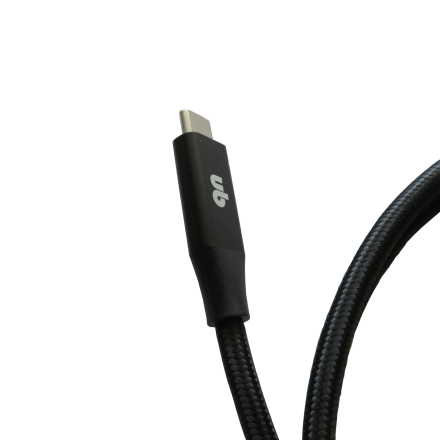

1m (3.3 ft) USB 4.0 40 Gbps braided cable
Unibrain’s USB 4.0 cables are USB-IF certified (USB4 Gen3x2), designed for professional applications, supporting Display Port, PCI express, Thunderbolt 3 and backwards compatibility with USB 3.2, USB 2.0.
The 1 meter (3.3 ft) USB 4.0, features Type-C to Type-C, PVC over-molding on both connectors and braided cable jacket and supports data speeds up to 40 Gbps and up to 100W power delivery.
Main Features:
- Double shielding for signal protection.
- Supports Display port resolutions up to 8K, 60Hz.
- Built-in high-speed re-timer and e-Mark (power) ICs to guarantee data transition and power stability, preventing overheating and auto-stop when fully charged, ensuring optimal device battery life and safety.
- Wire gauge rating: 30/32/26 and 34/34 Awg, OD: 4.8 mm.
- Transfers data between an external hard drive/ graphic card and laptop or PC at speeds up to 40 Gbps
- Charges and powers MacBook Pro, Windows laptops, or other USB Type-C or Thunderbolt 3 device from a USB Type-C wall charger.
- Flammability rating: UL 94 V-1.
- Rated voltage/current: 20V/5A.
- RoHS/REACH compliant.
$24.00
