  • FireboardBlue-e V2.0 1394a PCI express adapter

    ,

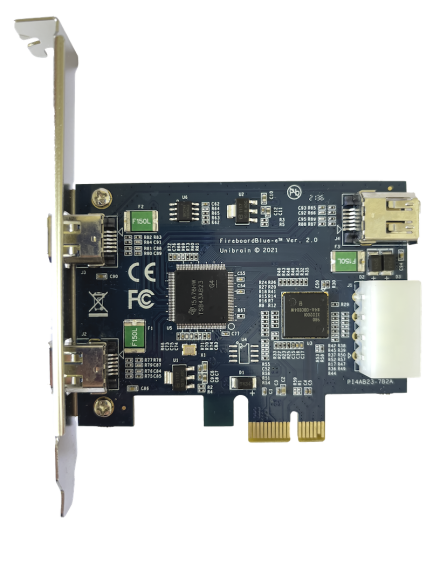

    FireboardBlue-e 1394a PCI-express adapter

    FireboardBlue-e is a 3 port, OHCI compliant ΙΕΕΕ 1394a PCI express adapter that provides plug ‘n’ play connectivity for FireWire-400 devices and peripherals.



    Specifications:

    • New generation 1394a PCI express adapter using TI
      TSB43AB23 1394 PHY/Link controller combined with TI XIO2001 PCI-e to PCI translation bridge.
    • 2 external and 1 internal FireWire ports with 100/200/400 Mbps throughput.
    • OHCI compliant/Compatible with any FireWire-400 device or peripheral.
    •  ‘Big IDE’ (Molex) internal power connector.
    • 4 isochronous transmit/receive DMA channels.
    • Operating power consumption 2.5W.
      With 4-pin Molex connector the maximum Vbus power per port is 18W and total deliverable Vbus power is 54W.
    • Low profile bracket included.
    • CE/FCC/RoHS certified.


    Software support:

    • Windows 7/8/10, 32/64 bit editions
    • Mac OS 10.4.x or later
    • Linux
    $49.00
    Add to Cart
  • Fireboard800-e V.3 1394b OHCI PCI-e adapter

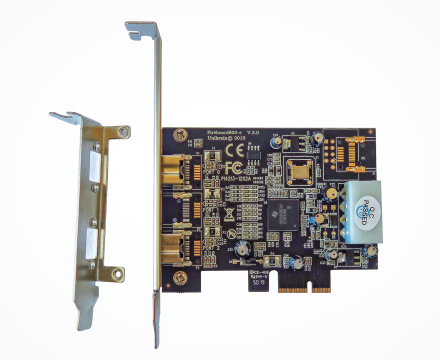

    Fireboard800-e V.3 1394b PCI express adapter

    Unibrain Fireboard800-e™ V.3 next generation Firewire-800 PCI express adapter is based on the Texas Instruments XIO2213B integrated PCI-e to 1394b OHCI (open host controller/link-layer) controller.
    The card features t    wo external fully backward compatible, Bilingual 1394b, 9 pin ports with support of 100/200/400/800 Megabits per second data transfers.

    $49.00
    Add to Cart
  • Fireboard-Blue 1394a PCI adapter

    Fireboard-Blue 1394a PCI adapter

    FireBoard Blue™ is a 3-port, single chip, OHCI-compliant 1394/FireWire® host adapter that provides plug ‘n’ play connectivity for FireWire devices and peripherals.



    Specifications:

    • Latest generation Texas Instruments TSB43AB23, integrated 1394 PHY/Link Controller.
    • 3 FireWire ports with 100, 200 and 400 Mbps throughput.
    • OHCI compliant/Compatible with any FireWire device or peripheral.
    • Internal power connector.
    • Supports repeater functionality.
    • 4 isochronous transmit/receive DMA channels.

    Operating Systems supported:

    • Windows 7/8/10, 32/64 bit editions
    • Mac OS 10.4.x or later
    • Linux

    The package includes:

    • One FireBoard-Blue™ PCI adapter.
    $30.00
    Add to Cart
  • Sale! Fireboard-800 V.3 64 bit 1394b PCI adapter

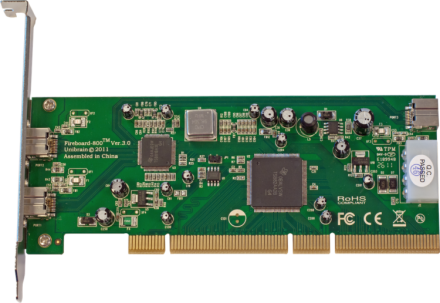

    Fireboard-800 V.3 64 bit 1394b PCI adapter

    Unibrain Fireboard-800™ V.3 64 bit 1394b PCI adapter is based on the dual chip Texas Instruments solution, of TSB82AA2B OHCI controller and TSB81BA3D 3 port transeiver S800 PHY.

    Original price was: $59.00.Current price is: $39.00.
    Add to Cart
  • Fireboard800-e Pro Dual Channel, 4 port, 1394b to PCI-e adapter

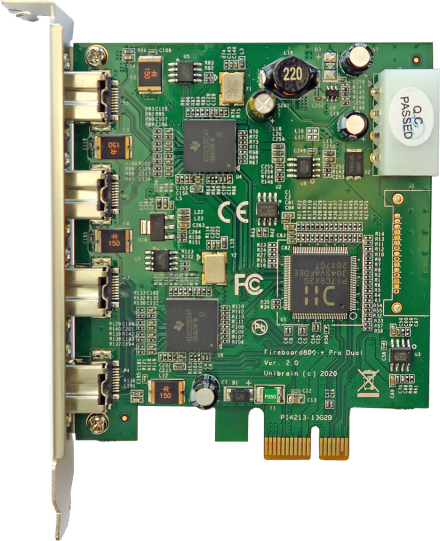

    Fireboard800-e Pro Dual™ channel 1394b to PCIe adapter

    Fireboard800-e Pro DualTM is a four (4) port, dual bus PCIe host adapter ideal for multi-camera acquisition systems that require fast and reliable data transfers to the host system. The card allows simultaneous image acquisition from up to 8 cameras at total data throughput of 160 MB/sec using a single x1 PCIe slot, and utilizes deep isochronous FIFO’s that guarantee an uninterrupted data flow.



    $175.00
    Add to Cart
  • FireboardBlue-e 1394a PCI-express adapter (old model)

    FireboardBlue-e 1394a PCI-express adapter (old model)

    Note: The product is at End of Life.

    The adapter is replaced by newer model: https://store.unibrain.com/shop/firewire/firewire-adapters/firewire-400-1394a-adapters/fireboardblue-e-1394a-pci-express-adapter-new-model/.

    FireboardBlue-e is a 2 port, single chip, OHCI compliant 1394a PCI express adapter that provides plug ‘n’ play connectivity for FireWire-400 devices and peripherals.

    $49.00
    Add to Cart
